AFPX

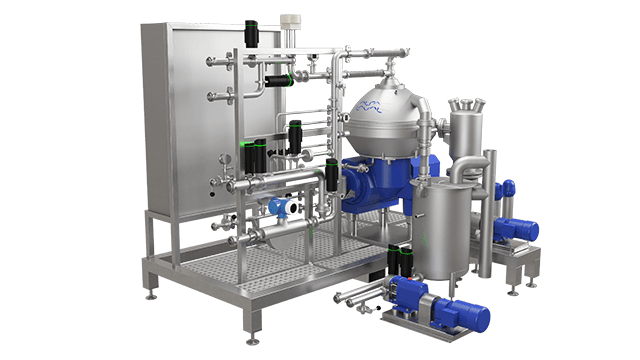

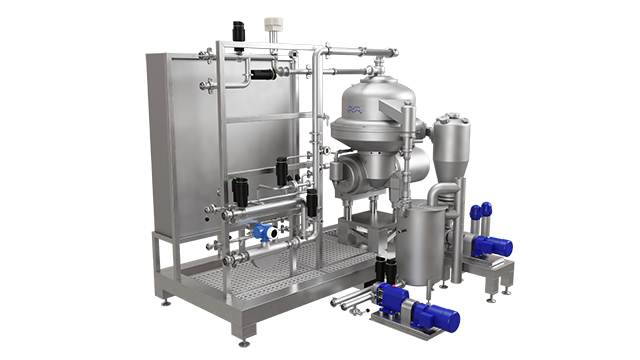

AFPX animal protein and fats centrifuges are used in meat and fish processing industries to purify and enhance the recovery of valuable protein fractions, fats, and oils. These robust and high-performing separators are specially designed for extremely demanding separation duties in order to meet the tough requirements of the food industry and exceptionally high hygienic standards. With an AFPX protein separator, you can achieve exceptional, high-quality fats and oils with 99.7% purity.

Achieve high animal protein and fat separation efficiency while keeping operating costs low

Easy to operate and maintain
Excellent wear and corrosion resistance
Longer running times which ensures increased yield
Cleaning in place (CIP) facility to keep the costs down
Small footprint

The protein business is highly competitive, and to be profitable you need to maximize quality and yield while keeping operating costs low. At Alfa Laval, we have more than 30 years’ experience from designing rendering, fat melting and protein recovery separation systems and protein separators. We know how you can reduce your environmental impact and get the extra percent of product out of your raw material that make all the difference to your bottom line.

Contact us via our online form

First name

Last name

Contact number

Company name

Email address

Country

Enquiry

Privacy agreement I consent to have my submitted information stored and processed in accordance with Alfa Laval privacy policy, so Alfa Laval can respond to my request.

That information is stored and processed in accordance to our privacy policy.

Why AFPX is the best option for animal protein separation and animal fat processing?

Key features of the AFPX range of protein centrifuges are their ability to handle high flow rates, high solids content and excellent separation performance. Due to these features, it is the ideal choice for tough conditions encountered in the animal and fish processing industries.

Depending on duty and feed composition, the AFPX protein separator can be configured in three different executions: concentrator, purifier and skimmer.

In addition, the AFPX combines a high G-force, high sludge capabilities and automated operation.

Applications - fat, oil and protein separators

AFPX protein centrifuge was designed to discharge solids intermittently, while at the same time separating two intermixed and mutually insoluble liquid phases of different densities. The centrifuges come in a series of optimized executions that are suitable for a considerable number of duties, including separating fish press water, stick water and extracts. Other applications include the purification of fish oil and liver oil, animal fat, peel oil, and similar products.

How it works

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor, before entering the disc stack. The distributor is designed especially to ensure smooth acceleration of the feed liquid.

The separation of liquid-liquid-solids takes place between the discs, with the oil phase moving through the disc stack to the centre and is discharged through pipes and sprayed out into the collecting frame.

The water and solids separated from the oil move out to the periphery, the water is led via channels in the top disc to the paring chamber, where it is pumped out of the rotor with means of a built-in paring disc.

The solids are collected in the periphery, from where it is discharged intermittently via the centrifuge cyclone.

The solids discharge is achieved by a hydraulic system which at preset suitable intervals forces the sliding bowl bottom to drop down and thus opening the solids ports at the bowl periphery.
